Beam mounted pull-out unit – standard

Choose product variant:

Only %1 left
SKU
la_standard-palettenauszug
from €494.00 each Piece
Excl. 19% VAT, excl. Shipping Cost
Packing Unit 1 Piece Delivery Time about 4-5 weeks Freight shipping
Technical Data
More Information
Size 800 x 1.200 mm | Storage surface
Handle Locking handle
Anti-slipping stripes inclusive
Fitting kit inclusive
Product advantages
  • High loads up to 800 kg
  • Easy installation in existing pallet racks
  • Supports ergonomic posture of employees
  • Order picking without tools possible
  • Informative product video

Downloads
KROG Montageanleitung | Palettenauszüge
Accessories
  1. Sicherheitsverriegelung für drei Auszüge
    Locking system for pull-out unit
    from €506.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  2. Palettenauszug mit Stahlboden
    Steel shelf panel for pull-out unit
    from €150.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  3. Foot unlocking system for pull-out unit
    Foot unlocking system for pull-out unit
    €21.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  4. Standard-Auszug mit seitlichem Ziehgriff
    Handle for pull out unit
    from €65.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  5. Traversenauszug auf Standfüßen
    Feet kit for pull-out unit
    from €228.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  6. Floor rails
    Floor rails
    from €105.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  7. Locking in extended position for pull-out units
    Locking in extended position for pull-out units
    from €145.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  8. Anschlagkante vorne für Palettenauszüge
    Stop edges at the front
    from €33.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  9. Geschlossener Stahlboden mit umlaufenden Rand
    Closed steel bottom for pallet pullouts with all-round edge
    from €247.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  10. Steel bottom with foot pedal, handle and collar frame
    Steel bottom with foot pedal, handle and collar frame
    €337.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product

Worth knowing & references

Reference project: Beam mounted pull out units for SAMSON

Reference project: Beam mounted pull out units for SAMSON

Were created a total of 284 storage spaces and 160 pieces pull out units mounted. Due to a multi-floor production and administration building were used special load distribution plates for the pallet racks.
go to project

Pull-out units with 300 to 800 kgs capacity load

Beam mounted pull-out unit – standard

UNIVERSAL USAGE &
EASY MOUNTING

The installation of our pallet pull-out units is very simple and uncomplicated: The pull-out units are placed on the existing shelf beams and connected to the shelf using counter plates and screws. The necessary fastening set and assembly instructions with safety instructions are included in the delivery. As a standard we deliver a screw set M8 x 140 for a truss height up to 115 mm. If you have higher trusses, we ask for information in the order. We will then supply longer screws at the same price. The pallet extensions can be installed in heavy-duty racks with a depth of 970 to 1.170 mm. If your pallet racks have a different rack depth, we can adapt the pull-outs accordingly without much effort.

Beam mounted pull-out unit – standard

BACK

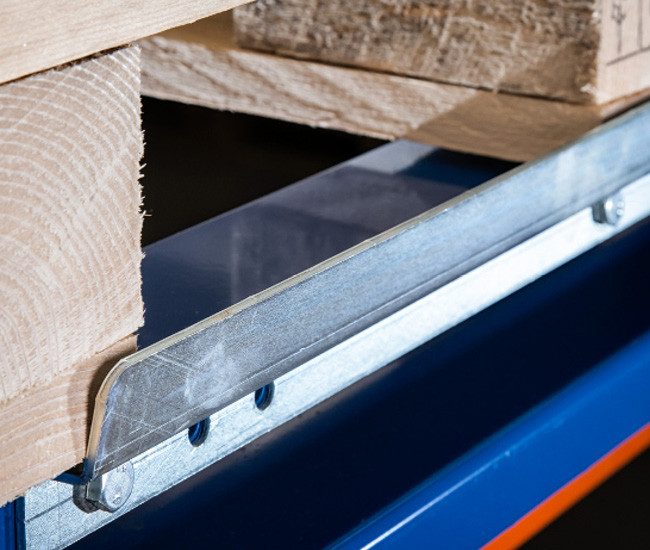

PUSH-THROUGH PROTECTION


A stop edge is bolted to the rear of our standard pull-out units. This ensures that the pallets are not pushed too far onto the drawer. When loading from the rear, this stop edge can be easily removed. Optional front stop edges are available in case of loading from the forklift side.

Our extremely stable KROG pallet pull-outs can be used universally in pallet racks and are ideally suited for holding EURO pallets. A solid steel construction ensures high load capacities from 300 kg to 800 kg depending on the model type. For loads up to 1.200 kg look here. The maintenance-free and smooth-running ball bearings guarantee easy retrieval and a long service life without maintenance costs!

Beam mounted pull-out unit – standard

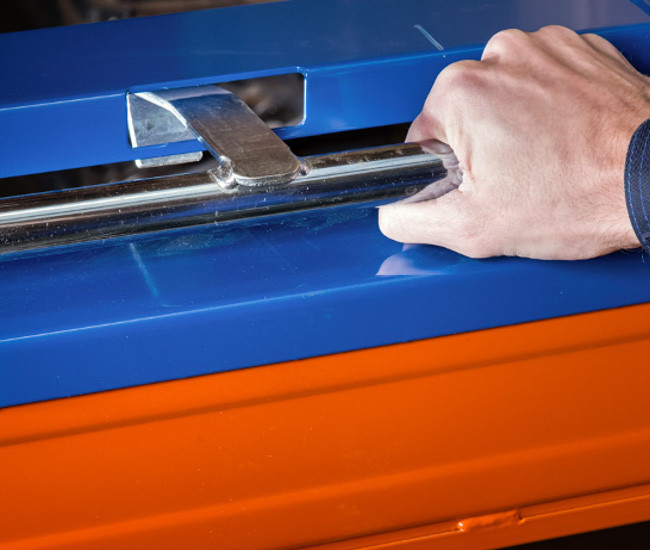

AUTOMATIC LOCKING


When pushed in, the pull-outs are automatically locked. By turning the locking rod, the drawer is unlocked and can be pulled out. When pushed back, the drawer locks itself.

Stored goods can be pulled out of the rack either up to approx. 70 % or 100 %. For our pull-out units with a load capacity of 600 kg and 800 kg, we also offer a pull-out on both sides with approx. 70 % pull-out depth. Alternatively, we also offer our heavy duty pull-out rack. This allows you to easily pull the pallets out of the rack together with the goods stored on them and to remove goods from the rear area of the pallets or the pallet cage in a way that is easy on your back. In this way, you achieve optimum utilization of the available storage space.

Pull-outs from KROG offer access to your goods at any time in all variants: fast - ergonomic - clearly arranged.

Beam mounted pull-out unit – standard

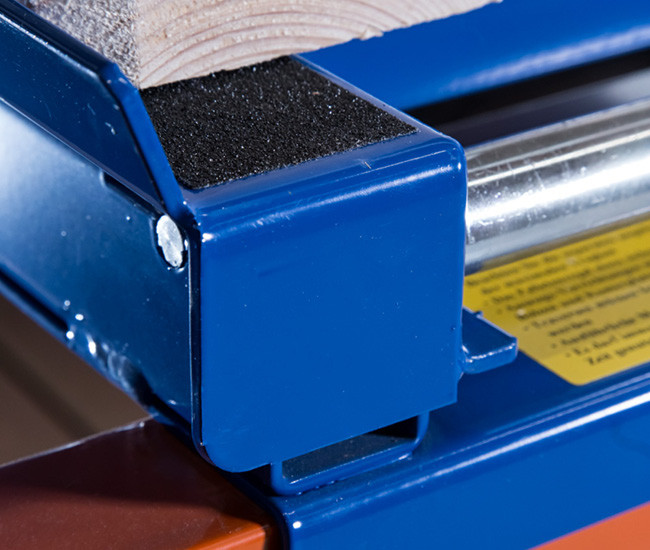

ROUNDED CORNERS &
ANTI-SLIP STRIPS


The drawers designed for the storage of pallets are equipped with anti-slip strips. These reduce the risk of paletetn slipping on the pull-outs when pulled out.

All corners on freely accessible parts are rounded to minimize the risk of injury. The surfaces of the drawers are powder-coated or galvanized to ensure a long service life.
