Krog Claim

Compact pull-out rack 200 kg two-way

Choose product variant:

Only %1 left
SKU
la_221700
from €2,678.00 each Piece
Excl. 19% VAT, excl. Shipping Cost
Packing Unit 1 Piece Delivery Time about 4-5 weeks Freight shipping
Technical Data
More Information
Rack width 880 mm
Rack depth 1.257 mm
Size 800 x 1.200 mm | Shelf
Load capacity 200 kg
Pull-out approx. 70 % two-way
Colour Gentian blue - RAL 5010
Colour Rack Gentian blue - RAL 5010
Colour drawers Graphite grey - RAL 7024
Product advantages
  • Ideal for storage of containers and small parts
  • Pull-out on two-ways up to 70 % per side
  • Two-sided working possible
  • Loading and picking on both sides
  • Shelves can be moved individually

Accessories
  1. Detailansicht Transportverriegelung
    Transport lock for pull-out racks
    €210.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product

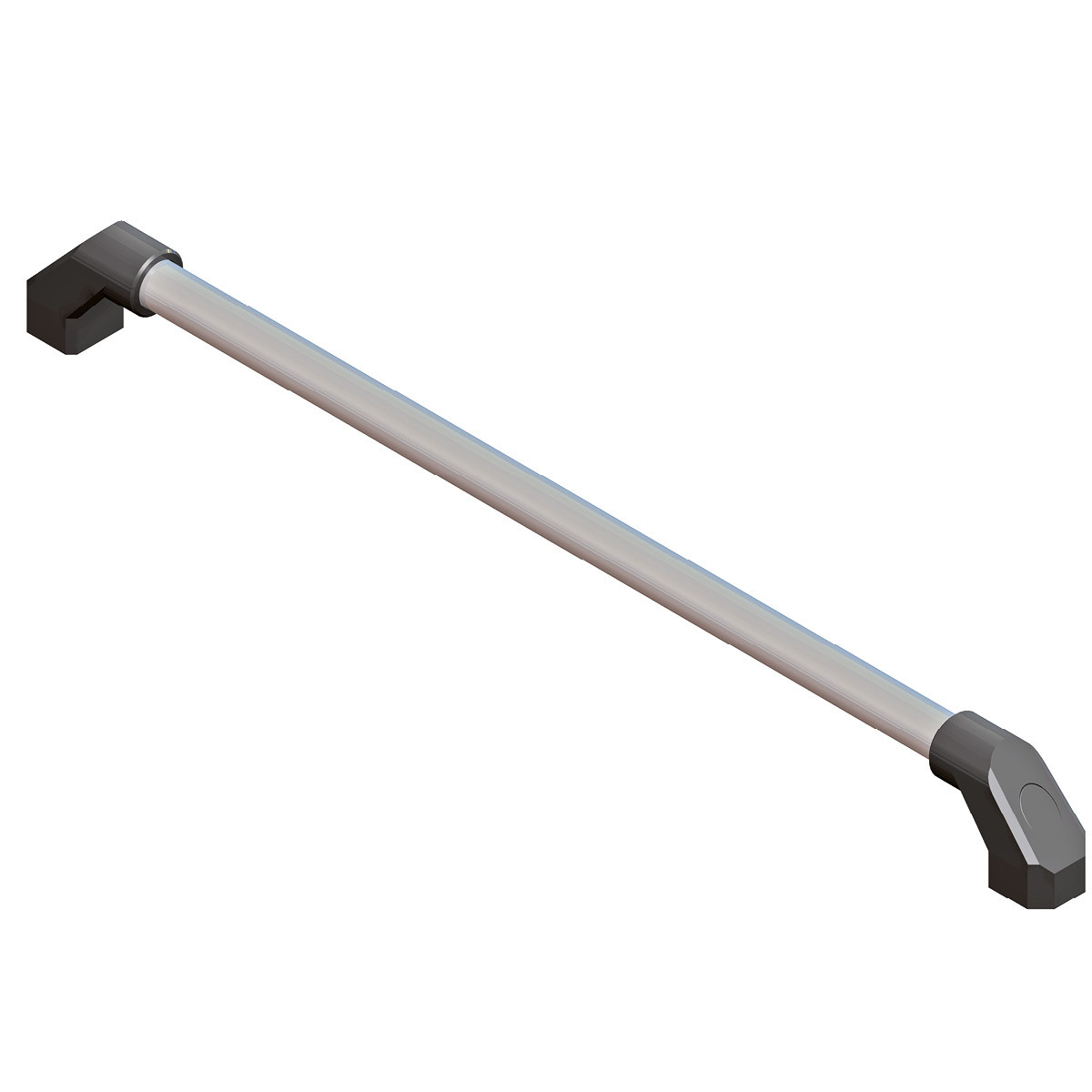

  2. Ziehgriff
    Side handle for pull-out rack
    €99.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  3. Abdeckplatte
    Shelf for pull-out rack
    €418.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  4. Gabelstaplertasche
    Fork lift slots for pull-out rack
    €330.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  5. Rollen für Auszugsregal
    Wheel set for pull-out rack
    from €393.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  6. Gegengewicht für Auszugsregal mit Rollen
    Counterweight for pull-out rack
    Price on request
    Excl. 19% VAT, excl. Shipping Cost
    to Product

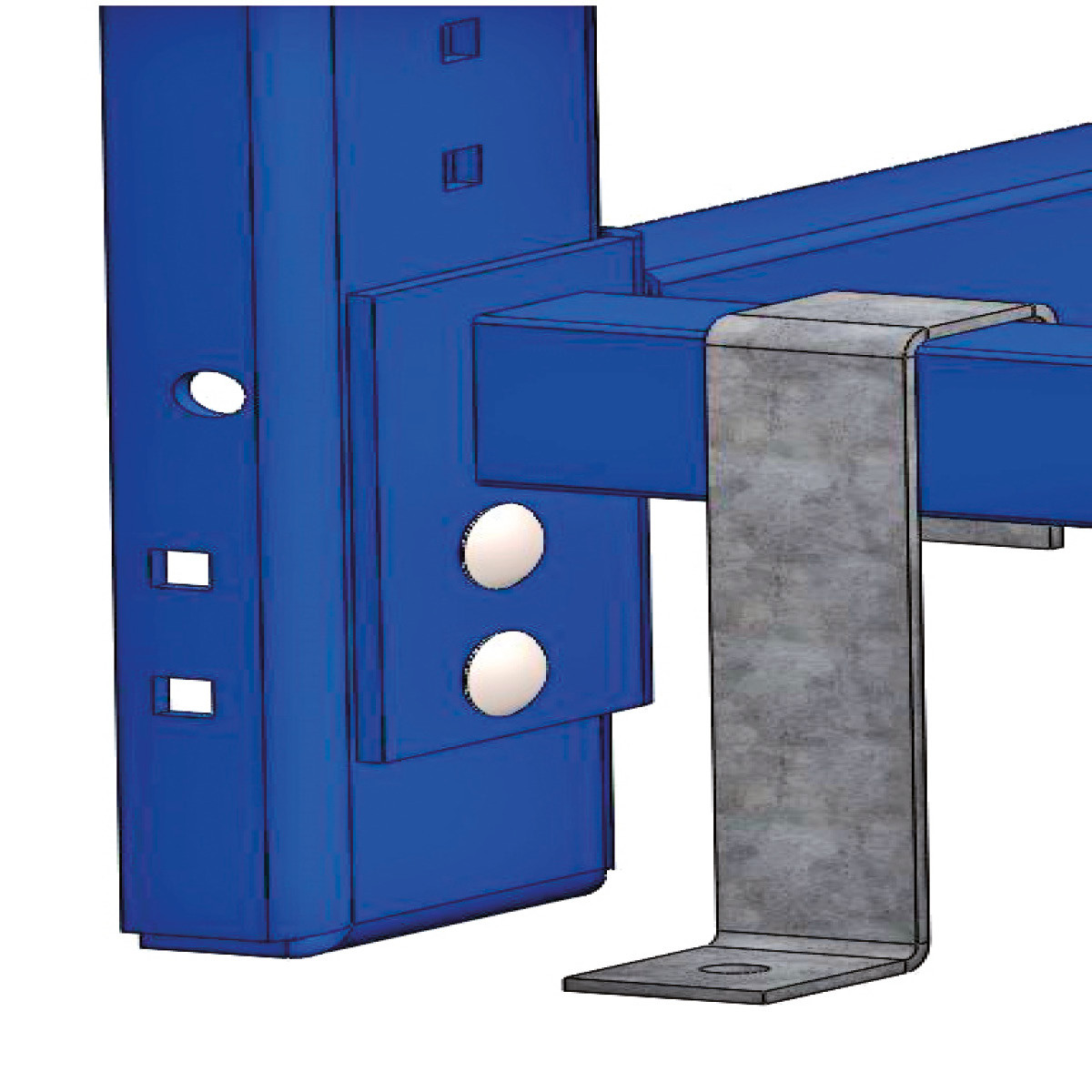

  7. Mounting bracket for pull-out rack
    Mounting bracket for pull-out rack
    €24.00 each Piece
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  8. Doors for pull-out rack
    Doors for pull-out rack
    Price on request
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  9. Front panel for drawer
    Front panel for drawer
    Price on request
    Excl. 19% VAT, excl. Shipping Cost
    to Product
  10. Metal panelling
    Metal panelling
    Price on request
    Excl. 19% VAT, excl. Shipping Cost
    to Product

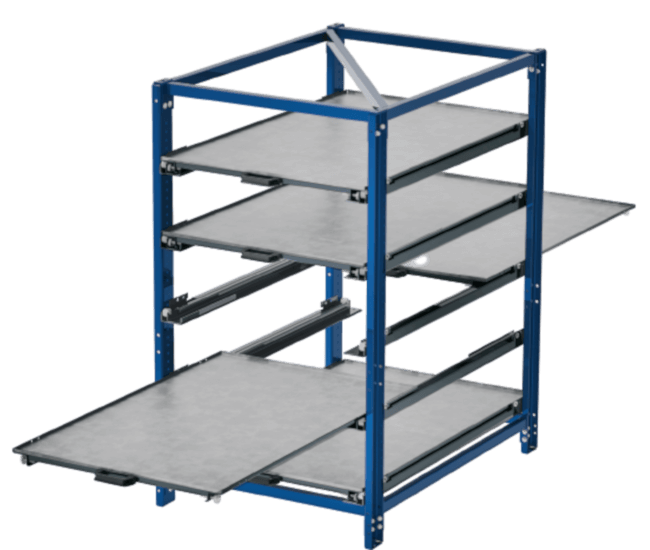

Compact pull-out rack with pull-out on both sides

Compact pull-out rack 200 kg two-way

PULL-OUTS ON BOTH SIDES
FOR REMOVAL AND LOADING

In addition to our approx. 70 % or 100 % one-sided compact pull-out rack, we also offer a version of our pull-out rack with a two-sided pull-out of all drawers. The pull-out depth of these versions is approx. 70 % with a load capacity of 200 kg per drawer.

The pull-out on both sides makes a two-sided use of the rack: from the picking aisle goods are removed with the support of the pull-outs while from the back the forklift side the racks can be restocked.

Due to their design these compact pull-out racks are not provided with a safety lock, so the racks must be anchored to the floor for safety. There is otherwise a risk of tipping if several drawers are pulled out at the same time.

Compact pull-out rack 200 kg two-way

VARIABLE - BY SIMPLY
MOVING THE DRAWERS

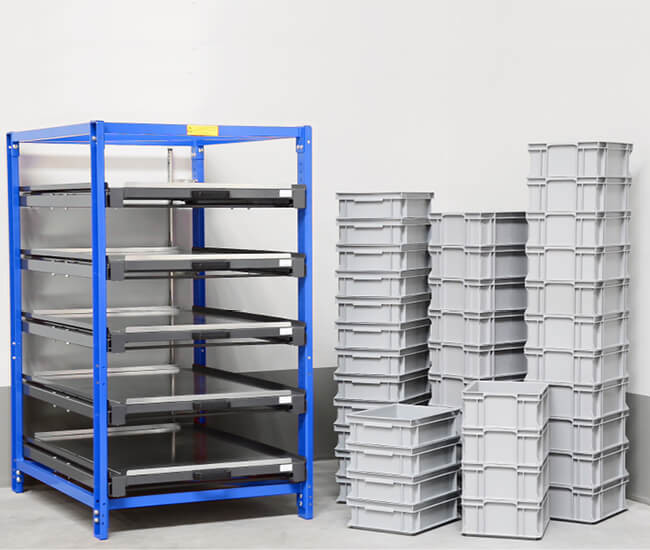

The support surface of the drawers is adapted to the Euro dimensions of 800 x 1.200 mm and therefore optimally suited for the storage of Euronorm or KLT containers. Each drawer is provided with a full-length galvanized steel bottom and the surrounding side rim provides a perfect hold for the containers.

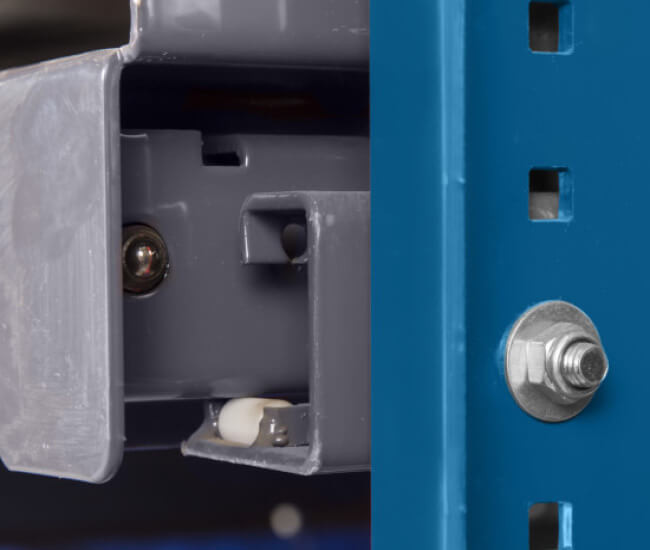

The drawers are connected to the rack frame by 4 screws. In order to be able to use the double-sided pull-out shelf flexibly, it is possible to  move the drawers easily at distance of 30 mm. Therefore the shelf can be quickly and easily adapted to changing requirements at any time.

Compact pull-out rack 200 kg two-way

FLEXIBILITY -
DUE TO COMPACT DIMENSIONS

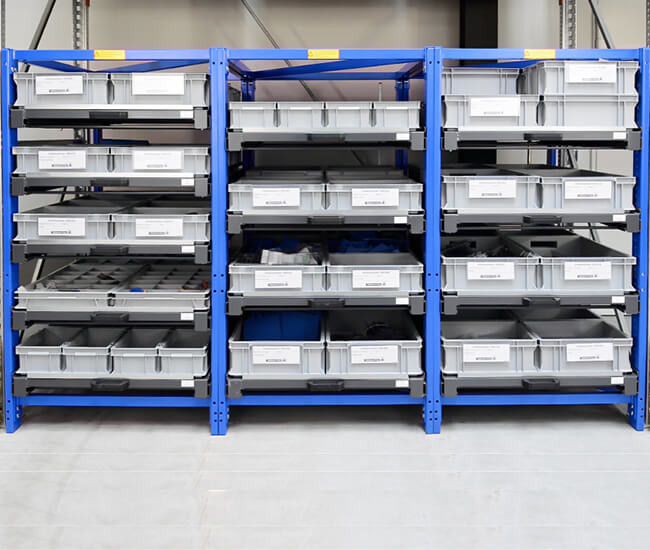

Due to the small external width of our compact pull-out shelving of only approx. 890 mm, the pull-out shelves on both sides can be integrated into the lowest level of a pallet rack. 3 pull-out racks fit exactly between the upright profiles of a pallet rack with 2.700 mm crossbars or 2 pull-out racks fit under a crossbar with a length of 1.800 mm. In this way the lower area can be optimally used for storing small parts while pallets continue to be stored on the traverse levels.

Compact pull-out rack 200 kg two-way

EXTENSIVE ACCESSORIES
& SPECIAL DESIGNS

We deliver our compact pull-out racks completely assembled, so that they are ready for use immediately after delivery. Through our extensive range of accessories, the shelves can be customized according to your requirements. Metal panels, storage shelves or forklift pockets are just some of the options available here. In addition, we also offer our compact pull-out racks as custom-made products in individual dimensions or customer-specific variants.
