Feet kit for pull-out unit

Skip to the beginning of the images gallery

Technical Data

More Information
Pull-out direction	Longitudinal extension
Pull-out approx.	70 %
Construction height	ca. 150 mm
Colour	Grey
Other	Special height possible on request

Product advantages

For the use of traverse pull-outs on the floor level
Overall height approx. 150 mm
High load capacity up to 1.000 kg
Special heights available on request
Our ergonomic tip: Additional pull handle and foot pedal for unlocking the pull-out!

For pull-out units at floor area

USE PULL-OUT UNITS ON FLOOR AREA

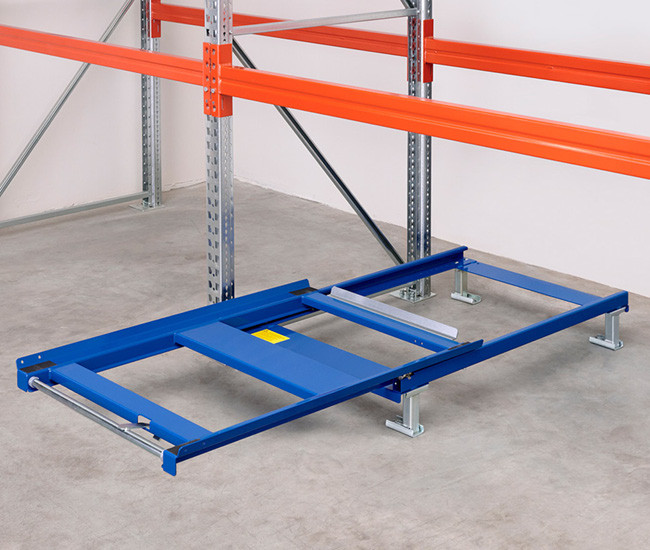

With the help of our KROG feet kit, you can also use our pull-out units for floor areas. Uneven floor surfaces or rails in the floor, for example, make the use of our floor extensions impossible.

The stable stand feet are fixed to the floor and the pull-out units are simply screwed on to the stand feet. The corresponding mounting kit is included in the delivery. One set of feet includes 4 feet, the height of the feet is 150 mm. We also offer special heights as a special design.

PULL HANDLE AND FOOT PEDAL -

THE RIGHT ERGONOMIC ADDITION

We recommend fitting the pull-out unit on feet with an optionally available pull handle and foot pedal for better ergonomic handling. The pull-out handle is available in heights of 500, 700 and 900 mm. The foot pedal allows you to unlock the pull-out unit with your foot without having to lean down.
