Floor mounted pull-out unit for pallet cages | loading from pick up corridor

Choose product variant:

Only %1 left
SKU
la_bodenauszug_gitterbox_kommgang
€511.00 from €511.00 each Piece
New
excl. 19% VAT, excl. Shipping Cost
Packing Unit 1 Piece Delivery Time about 4-5 weeks Freight shipping
Technical Data
More Information
Pull-out direction Longitudinal extension
Size 800 x 1.200 mm | Storage surface
Pull-out approx. 85 %
Loading front-loading
Colour Gentian blue - RAL 5010
Fitting kit inclusive
Product advantages
  • Extension depth: 85 %
  • Load capacity: 800 or 1,000 kg
  • Optimum use of storage space
  • For the storage of pallet cages
  • Loading & unloading from the front
  • Secure foot locking system

Floor mounted pull-out unit for pallet cages

Floor mounted pull-out unit for pallet cages | loading from pick up corridor

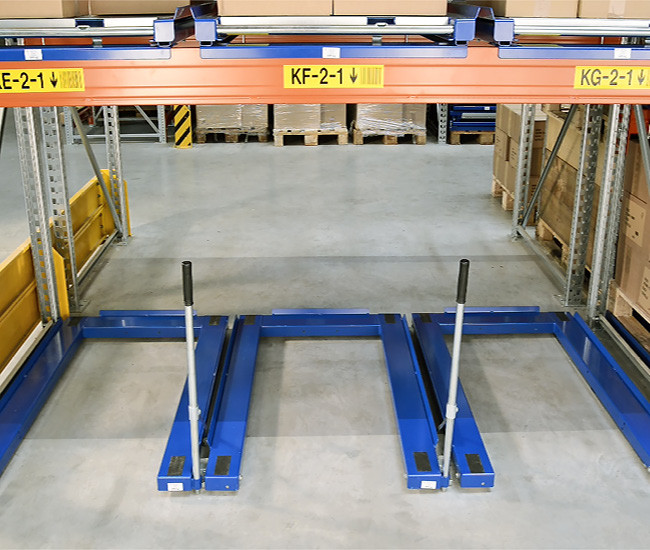

3 PULL-OUT UNITS IN A 2.7 M BAY

Our KROG floor mounted pull-out units for wire mesh boxes enable efficient and ergonomic storage of goods in pallet cages or comparable load carriers at floor level in pallet racking. The floor mounted pull-out unit allows stored load carriers to be simply pulled out of the rack so that goods placed further back can also be removed quickly and safely - without the use of pallet trucks, forklifts or cranes.

Picking and loading are carried out conveniently from the picking aisle (front). A variant for loading from the forklift aisle is also available.

Thanks to its compact design, three base pull-out units for mesh boxes fit between the uprights of a pallet rack with a 2.7 m width.

Floor mounted pull-out unit for pallet cages | loading from pick up corridor

MAXIMUM SPACE UTILIZATION THANKS TO 85 % EXTENSION  DEPTH

The floor mounted pull-out units have a pull-out depth of approx. 85 % and can therefore be pulled out almost completely from the rack. This enables easy access to the entire storage area and optimum use of the available shelf space.

For maximum safety, the pull-out unit has a stop edge on all four sides to prevent pallet cages or similar load carriers from slipping. The laterally slanted stop edges make it easier to position the load carriers precisely when loading and unloading with pallet trucks, forklifts or cranes. The rear end stop edge ensures that load carriers are not pushed too far into the rack.

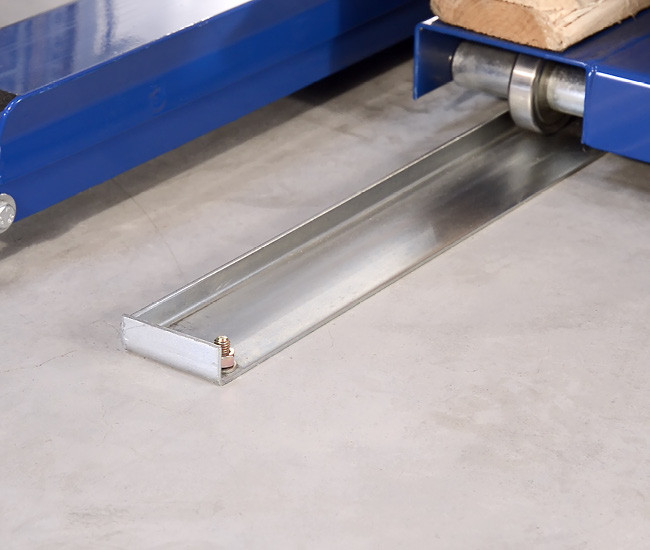

The floor mounted pull-out unit runs on two floor rails that are mounted directly on the warehouse floor. These ensure a stable and safe straight run. The complete fixing set is included in the scope of delivery.

Floor mounted pull-out unit for pallet cages | loading from pick up corridor

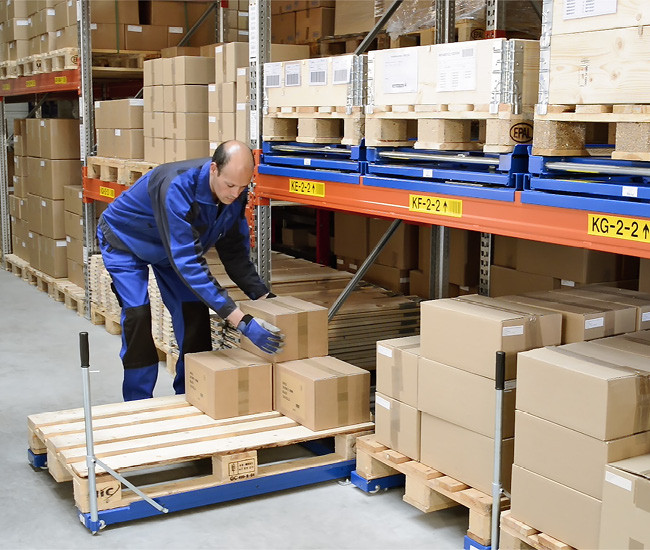

FOCUS ON ERGONOMICS & EFFICIENCY

The KROG floor mounted pull-out units for pallet cages offer numerous advantages for storage at floor level:

  • Ergonomic handling: employees do not have to bend low into the shelving to remove goods.
  • Cost savings: no need to use an pallet truck, forklift or crane to remove individual parts.
  • Time saving: Easier removal speeds up picking processes.

When pushed in, the pull-out unit is automatically locked and cannot roll into the picking aisle unintentionally - even when pressure is applied from the rear.

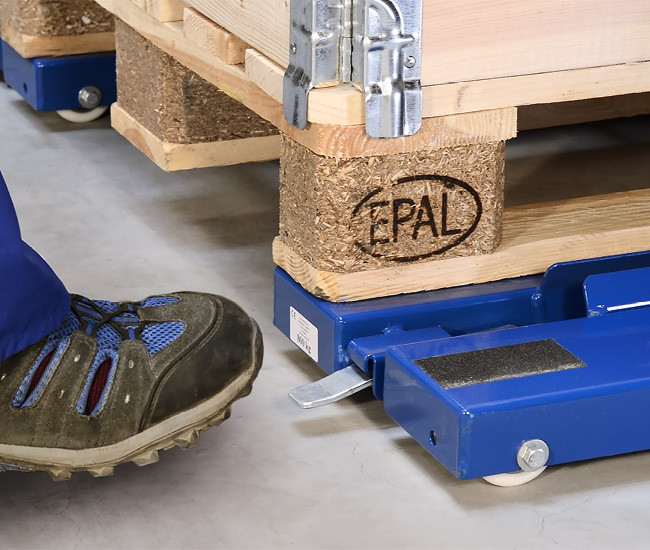

  • Easy unlocking: The foot pedal allows quick and convenient unlocking.
  • Safe handling: The mesh box itself serves as a handle - additional pull handles have been deliberately omitted as they would pose an increased risk of injury when used with mesh boxes due to a lack of space.
Floor mounted pull-out unit for pallet cages | loading from pick up corridor

MATERIAL & DIMENSIONS

The floor mounted pull-out unit for wire mesh boxes consists of a robust powder-coated and galvanized steel construction that guarantees a load capacity of up to 1,000 kg.

  • Maintenance-free, smooth-running ball bearings ensure effortless extension and a long service life without maintenance costs.
  • Corners have been reinforced with steel plates especially for the loads of pallet cages.

Available color:

  • RAL 5010 gentian blue

TECHNICAL DATA

Overall width: 885 - 887 mm*
Total depth: 1,300 - 1,309 mm
Height: 98 mm
Support surface: 825 mm (width) x 1,225 mm (depth)
Weight: 26 - 28 kg*

* depending on the model
